PRODUCT DETAILS

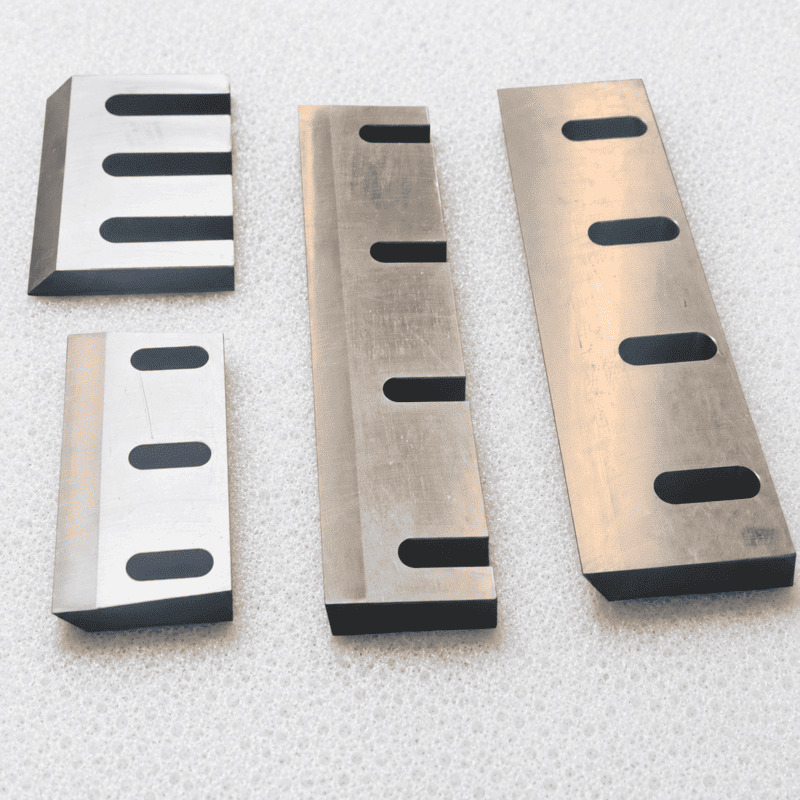

Industrial D2 HSS Crusher Blades Custom Size Crusher Machine Replacement Knives
Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. manufactures heavy‑duty crusher blades built for continuous high‑intensity crushing tasks. These rectangular insert‑style cutting knives offer reliable shearing performance for plastics, rubber, timber and recycling waste. Precision grinding plus professional thermal treatment preserve sharp edges, effectively reducing machine load in long‑run crushing production.
- Order(MOQ)
- 1
- Payment
- TT,LC
- Product Origin
- China
- Color
- N/A
- Shipping Port
- Ma'anshan Shipping Port
- Lead Time
- 30 days
Need a custom size or material? Send us your drawing.
Product details
These crusher blades are manufactured from high‑performance alloy and high‑speed steel, featuring excellent wear resistance and impact resistance. Suitable for various industrial crushing and shredding equipment, widely applied in waste recycling, material crushing and other industries. Custom dimensions are supported to match different machine models.
Technical Specifications
|
Feature |
Technical Details |
| Material Options | D2(SKD11), HSS(M2), LD, A8, Alloy Tool Steel (Customizable) |
| Hardness (HRC) | 56‑62 HRC, tuned for heavy‑impact crushing operations |
| Tolerances | Flatness & Parallelism ≤0.005mm, precision ground surface finish |
| Dimension Range | Custom length, width, thickness based on customer drawings |
| Mounting Hole | Oval mounting slots for flexible installation position adjustment |
| Processing | Vacuum quenching, tempering, optional deep cryogenic treatment |
| Edge Profile | Straight cutting edge, customizable bevel angle |
Main Features
- High‑impact resistant base material: High‑alloy tool steel prevents edge chipping under frequent material impact.
- Precision ground cutting edge: Consistent sharpness minimizes material jamming inside crusher chambers.
- Oval‑shaped mounting slots: Support fine position adjustment during on‑site blade assembly.
- Mature heat‑treatment process: Stabilizes internal metal structure for cyclic heavy‑duty working scenarios.
- Full custom geometry support: Adapt to various crusher models and different raw‑material processing requirements.
Advantages
- Excellent anti‑chipping property: Strong impact resistance reduces cracking risk when crushing hard mixed materials.
- Extended service life: Superior wear resistance cuts replacement frequency and production downtime.
- Uniform crushing output: Stable shearing force generates even‑sized crushed particles.
- Convenient installation & maintenance: Standard mounting structure speeds up blade swap‑out on site.
- Factory‑direct custom support: Deliver non‑standard dimension blades to retrofit your existing crusher units.

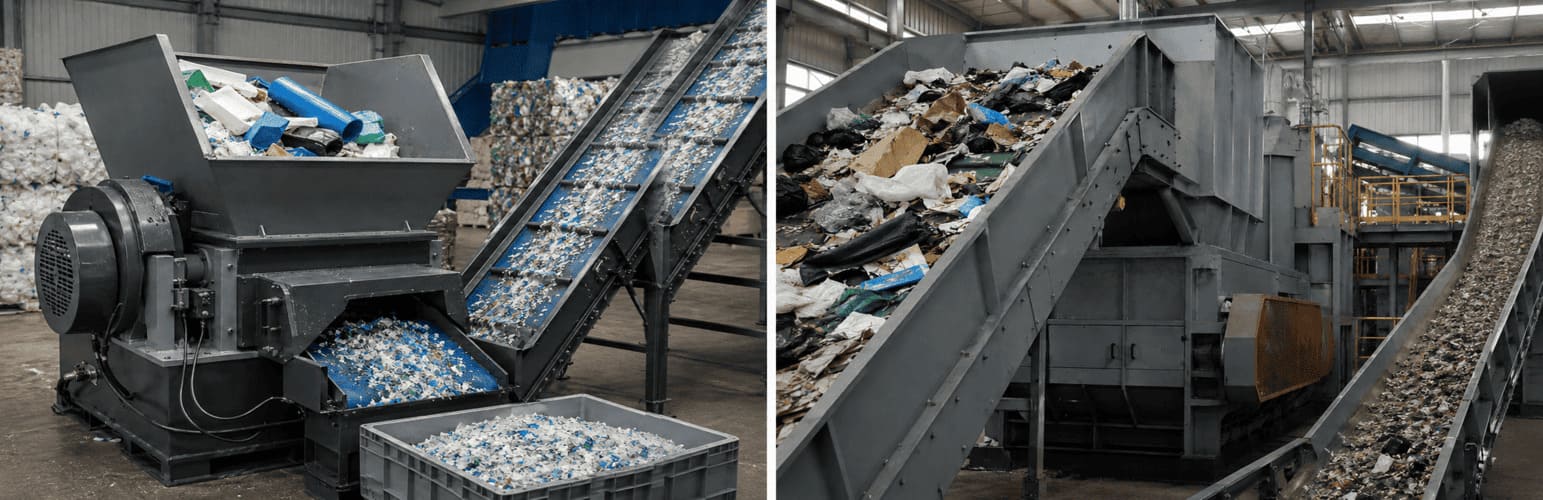

Product Applications
- Plastic crushing: Waste plastic blocks, pipes, films and plastic profiles processing.
- Rubber recycling: Waste rubber blocks and rubber material crushing.
- Wood processing: Wood scraps, wood blocks and biomass material crushing.
- Waste resource recovery: Light industrial waste, domestic waste crushing equipment.
- Replacement spare knives for multiple types of industrial crusher hosts.
Why Choose Us
- Targeted material matching: Recommend suitable steel grade and hardness according to your actual crushed feedstock.
- Strict tolerance control: Precision grinding ensures good interchangeability with original crusher assemblies.
- Drawing‑based custom manufacturing: Produce blades strictly following customer drawings or physical samples.
- Practical‑solution optimization: Tune edge angle and hardness to resolve real‑world crushing pain points.
- Complete pre‑delivery inspection: Every blade undergoes dimension and hardness testing before shipment.
