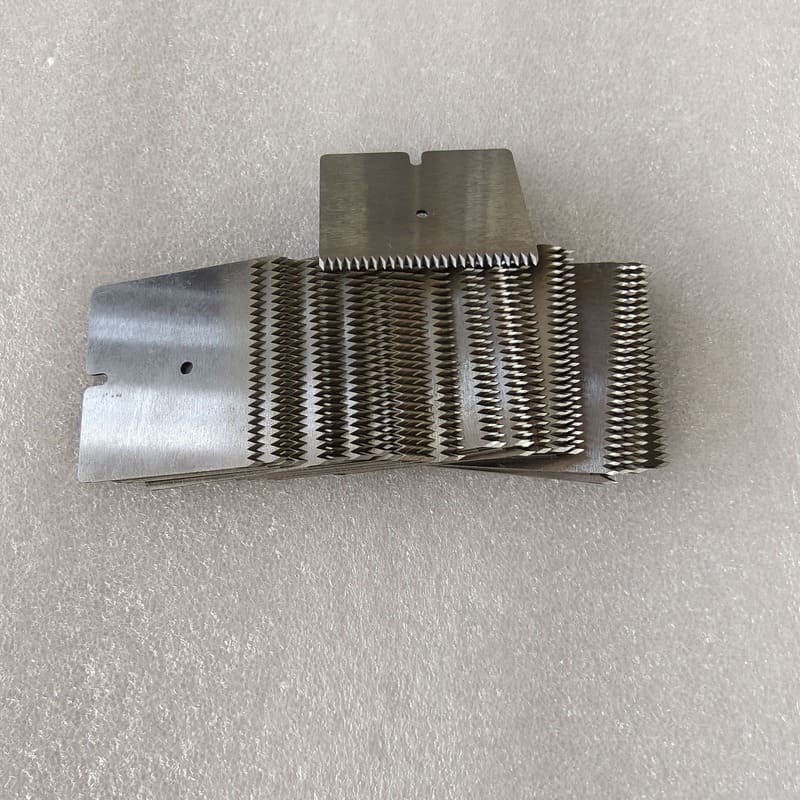

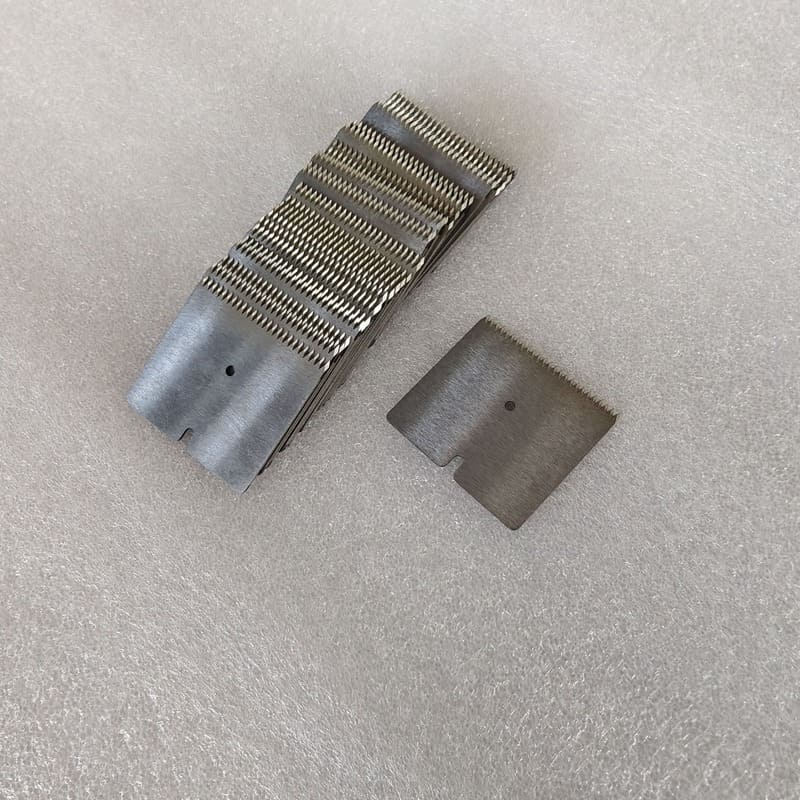

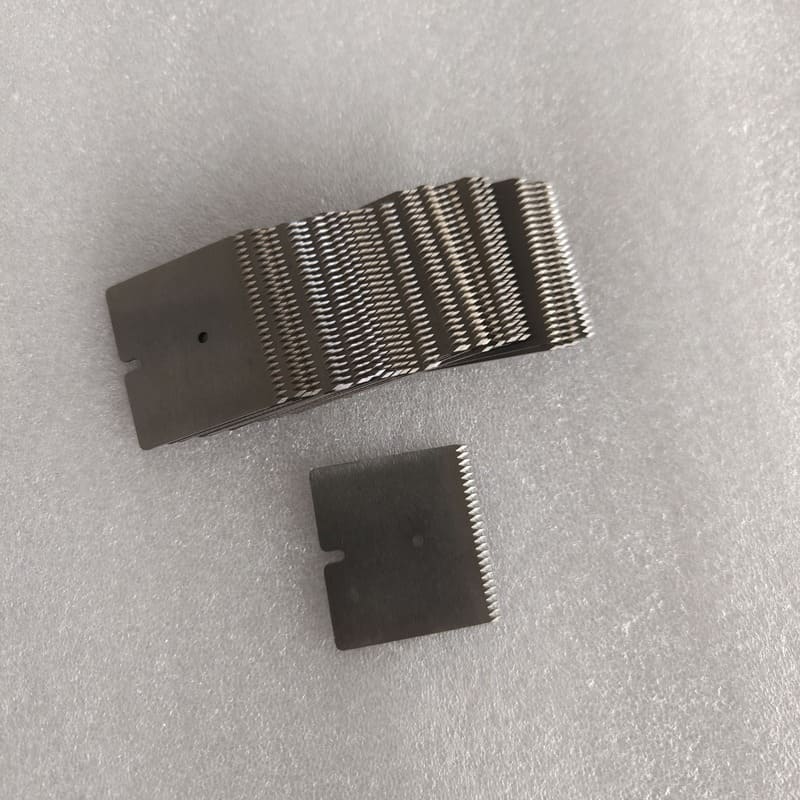

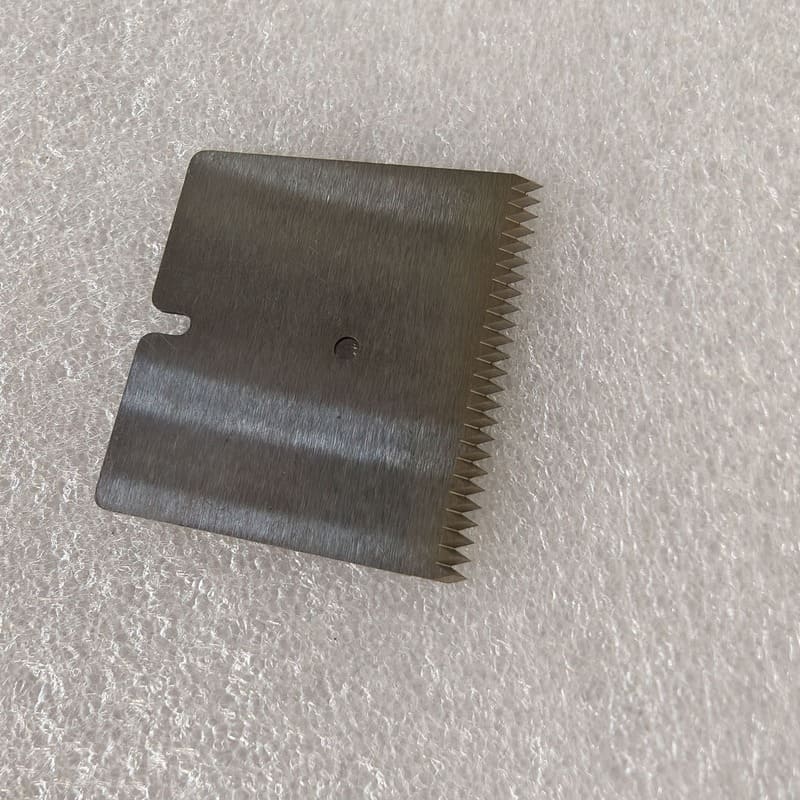

Industrial HSS Serrated Packaging Machine Tooth Blades Custom Dimension Cutting Inserts
Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. manufactures precision serrated packaging machine tooth blades. These toothed insert cutters are built for high‑speed packaging equipment to cut plastic films, composite packaging bags and adhesive tapes. Premium tool steel and strict heat‑treatment deliver sharp uniform tooth profile, stable cutting performance and long service life. Each blade holds tight dimensional tolerances to fit multiple packaging machinery models.
- Order(MOQ)
- 1
- Payment
- TT,LC
- Product Origin
- China
- Color
- N/A
- Shipping Port
- Ma'anshan Shipping Port
- Lead Time
- 30 days
Need a custom size or material? Send us your drawing.
Product details
Technical Specifications
|
Feature |
Technical Details |
| Material Options | HSS(M2), D2(SKD11), Cr12MoV, stainless steel (Customizable) |
| Hardness (HRC) | 58‑64 HRC, tuned for packaging material continuous cutting |
| Tolerances | Flatness ≤0.003mm；Tooth pitch tolerance ≤0.02mm |
| Overall Dimension | Custom length, width, thickness per machine requirement |
| Mounting Feature | Precision positioning hole & notch for accurate installation |
| Edge Geometry | Uniform serrated tooth profile, custom tooth pitch available |
| Processing | Vacuum quenching, cryogenic treatment, precision tooth milling |
Main Features
- Precision Serrated Tooth Profile: High‑precision milling forms evenly distributed sharp teeth, avoiding material pulling or tearing during packaging cutting.
- Premium Tool Steel Substrate: Selected high‑grade tool steel base provides good hardness and toughness, resisting chipping under cyclic high‑speed cutting.
- Accurate Mounting Structure: Reserved positioning hole and locating notch guarantee consistent installation position, prevent offset in high‑speed running.
- Strict Flatness Control: Tight flatness tolerance ensures the whole blade bears force evenly, reducing vibration during equipment operation.
- Customizable Tooth Pitch & Outline: Support tailor‑made tooth density and overall dimensions to match diverse packaging machine configurations.
Advantages
- Clean Cutting Effect: Serrated edge creates neat incision for film, tape and packaging bag, no frayed edges, lower defective product rate.
- Outstanding Wear Resistance: Heat‑treated and cryogenic‑processed blade extends service cycle, reduces frequent blade replacement downtime.
- Anti‑chipping Performance: Balanced hardness and toughness prevents tooth cracking under continuous high‑frequency cutting workload.
- Quick Replacement & Stable Operation: Standard mounting structure enables fast blade swap, keeps packaging line steady high‑speed running.
- Cost‑effective Custom OEM Service: Direct factory supply, custom dimension solutions to replace expensive original equipment spare parts.
Product Applications

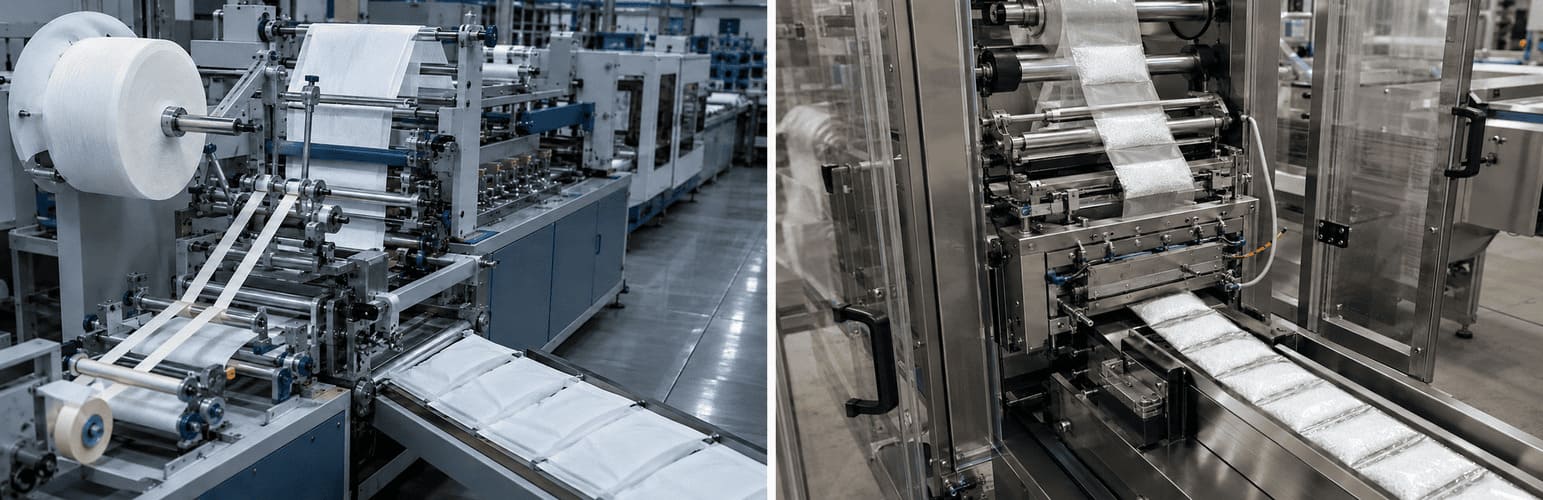

- Vertical & horizontal automatic packaging machines.
- Cutting of plastic packaging film, composite bag, adhesive tape, non‑woven packaging material.
- Food packaging, daily‑goods packaging, chemical bag‑making industry.
- Industrial bag‑making equipment, continuous sealing‑cut integrated machinery.
Why Choose Us
- Targeted cutting geometry optimization: We optimize serrated tooth shape and tooth pitch according to real packaging material cutting difficulties.
- Rigorous dimensional tolerance control: Each finished tooth blade goes through multi‑item inspection for flatness, tooth profile and mounting dimension.
- Flexible custom development: Modify material, tooth parameter and outline drawing to satisfy non‑standard packaging equipment demands.
- Spare‑part matching capability: Deliver matched replacement tooth blades for numerous mainstream packaging machine types.
