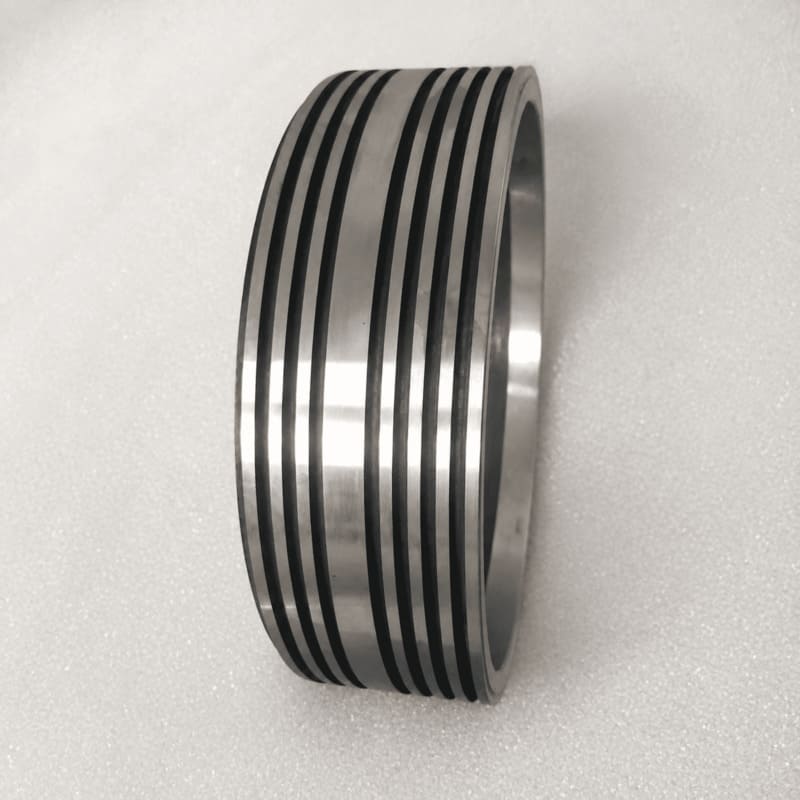

Multi‑Groove Multi‑Edge Bottom Slitter Rotary Tool Steel Blade
Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. manufactures high‑precision multi‑edge bottom slitter blades. These integral multi‑groove rotary bottom knives are engineered for industrial high‑speed slitting equipment, delivering consistent multi‑strip cutting performance for metal foil, paper, adhesive substrates and various composite materials under continuous heavy‑duty production conditions.
- Order(MOQ)
- 1
- Payment
- TT,LC
- Product Origin
- China
- Color
- N/A
- Shipping Port
- Ma'anshan Shipping Port
- Lead Time
- 30 days
Need a custom size or material? Send us your drawing.
Product details
Technical Specifications
|
Feature |
Technical Details |
| Material Options | D2(SKD11), HSS(M2), LD, A8, Premium Carbide (Customizable) |
| Hardness (HRC) | 58‑64 HRC, tuned for continuous multi‑groove shearing workload |
| Tolerances | Flatness & Parallelism ≤0.003mm; Radial runout ≤0.005mm |
| Dimension Range | OD 60‑520mm, Custom ID bore, Multi‑groove profile customizable |
| Machining Process | Vacuum quenching, optional deep cryogenic treatment, precision multi‑groove turning |
| Groove Form | Multi‑concentric groove structure, groove quantity & spacing per drawing |
Main Features
- Precision Multi‑Groove Profile: Integral multi‑edge grooved structure completes multiple cutting tracks in one rotation, matching upper slitter knives for synchronous multi‑strip separation.
- Strict Dimensional Tolerance: Ultra‑tight parallelism and runout control prevent offset cutting during high‑speed equipment operation.
- Premium Tool Steel Substrate: High‑alloy tool steel raw material supports long‑duration heavy‑load slitting work conditions.
- Optional Cryogenic Treatment: Optimizes internal material microstructure to strengthen edge stability and anti‑abrasion performance.
- Precision Bore Machining: High‑accuracy inner bore ensures concentric installation on slitter arbor, reducing runtime vibration.
Advantages
- Consistent Multi‑strip Cutting Effect: Uniform groove precision generates neat cutting sections with low burr rate, lowers finished‑product rejection rate.
- High Production Efficiency: Realizes multiple strands cutting in single pass, reduces tool replacement frequency and improves line throughput.
- Excellent Wear Resistance: Heat‑treated tool steel extends service life, cuts down downtime caused by blade maintenance.
- Stable High‑speed Operation: Fine‑tuned concentricity suppresses vibration, adapts to long‑time continuous running of slitting equipment.
- Flexible Custom Support: Groove number, groove pitch, outer‑inner diameter and hardness can be adjusted according to actual slitting requirements.

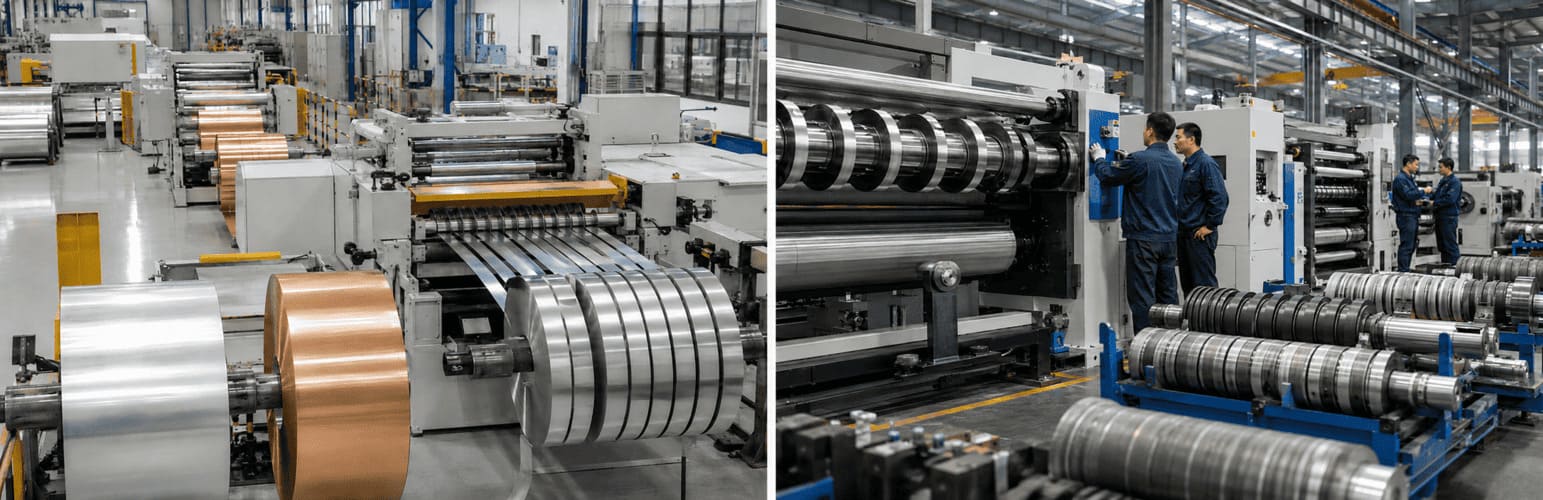

Product Applications
- Metal processing: Slitting for aluminum foil, copper foil, thin stainless‑steel coil strips.
- Paper & packaging industry: Paper roll, composite paper, adhesive base‑paper multi‑strip dividing.
- Film & new‑material industry: Plastic film, laminated composite material multi‑track slitting.
- Equipment matching: Serves as bottom mating knife for various rotary slitting machines.
Why Choose Us
- Targeted material‑hardness matching: Select proper steel grade and hardness solution for multi‑groove bottom knife working scenarios.
- Profile custom capability: Accurately reproduces complex multi‑groove profiles based on customer drawings and sample references.
- Strict tolerance inspection: Every finished multi‑edge bottom slitter undergoes dimension & runout detection before delivery.
- Compatible mating‑set solution: Matches corresponding upper circular slitter knives to achieve complete cutting group performance.
